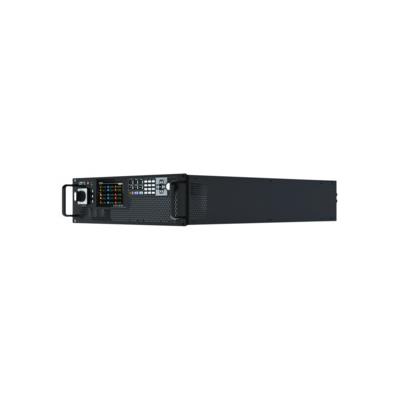

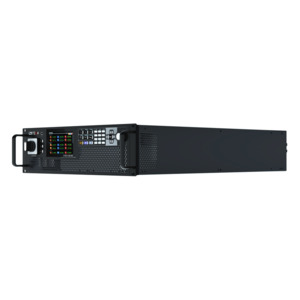

ITECH IT7800 Series High-Power AC/DC Power Supply

Series Features And Specifications

• Adopt advanced SiC technology
• High power density, 3U up to 15kVA
• Master-slave parallel with current sharing technology, up to 960kVA
• Multiple units in parallel work as one Voltage up to 350V L-N
• Output frequency: 16-2400Hz, programmable slew rate setting for changing voltage and frequency
• Built-in single/3-phase AC power meter
• Multi-channel function, single unit can connect/test up to 3 DUTs
• 4 output modes: AC/DC/AC+DC/DC+AC
• Choose single phase, three-phase, reverse phase output mode, to simulate 3-phase imbalance, 3-phase harmonics imbalance, 3-phase split phase test, reverse phase sequence tests for 3-phase models and etc
• Comprehensive harmonics measurement and analysis, up to 50th
• Harmonics, inter-harmonics waveform synthesizer
• Programmable output impedance
• Intuitive touch screen interface
• Simulate arbitrary waveform output, support csv. file import
• High current crest factor, suitable for inrush current testing
• Built-in various waveforms
• List mode simulates the power supply reproduction function to cause the simulation function of instantaneous power interruption
• Provide rich trigger configuration, synchronously capture the voltage waveform of DUT, collect and simulate data
• Output 0-360 degree start/stop phase angle can be set
• Surge/Sag function
• Relay CTRL function, to cut off the connection between instrument and DUT 6-phase, 12-phase power output
• Built-in USB/CAN/LAN/Digital IO interface, optional GPIB / Analog & RS232

IT7800 Series - Designed for New Energy, Power Electronics & Research

Adopting advanced SiC technology, ITECH IT7800 3U high series of programmable AC/DC power supply has power up to 15kVA and voltage ranges up to 350V L-N. Configuring the master-slave parallel modes will allow users to increase output power up to 960kVA.

This series also features a built-in power meter and arbitrary waveform generator to simulate harmonics and other arbitrary waveform outputs. Users can choose single phase, three-phase, reverse phase, and multi-channel, totaling 4 output modes, with programmable output, and complete measurements.

Applications

• Civil aviation - airborne equipment, airport ground facilities
• Power electronics - frequency converter, UPS, AC motor
• Appliances - air conditioner, microwave oven, refrigerator, washing machine
• Medical equipment - CT, MRI, life detector etc
• Research institute, lab, testing organizations - AC/DC power adapter, EMC test
• New Energy - OBC，AC/DC charging pile

What's in the Box

• Power cord
• USB communication cable
• Factory calibration certificate
