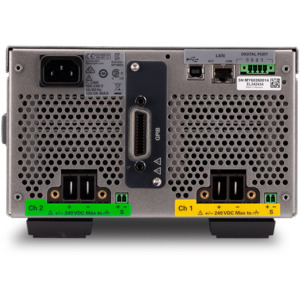

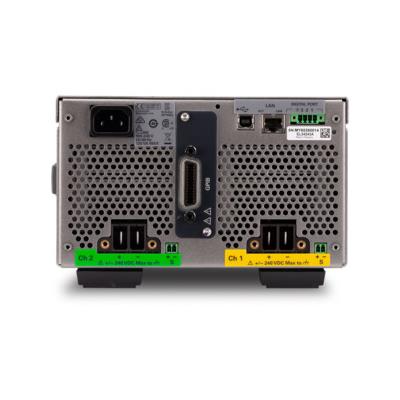

Keysight EL34243A Dual Input DC Electronic Load, 2X 150 V, 60 A, 300 W, USB, LAN, EL30000 Series

$4,616

Model :
  • EL34243A
Share:

EL30000 Series Bench DC Electronic Loads - Measure, Capture and Display

The EL30000 Series bench DC electronic loads provide superior performance in compact bench form factor. A single and dual-channel model is available with up to 600 W – ideal for design verification of consumer power supplies, batteries, battery modules, solar panels, LED drivers, and power converters. You can easily characterize wide-bandgap semiconductor components such as MOSFET and IGBT.

  • EL34143A Single-input DC electronic load: 150 V, 60 A, 350 W
  • EL34243A Dual-input DC electronic load: 150 V, 60 A, 300 W; total 600 W
  • EL34GPBU Optional GPIB Interface Module User Installable for EL30000 Series
Measures accurately
  • integrated voltmeter and ammeter
  • precise programming / readback accuracy
  • built-in 2-wire and 4-wire remote sense technology
Captures, stores, and transfers dynamic waveforms
  • data logger that is configurable
  • log voltage, current and energy
  • internal or external memory storage
  • export to .CSV for post analysis
Displays like an oscilloscope for precise analysis
  • performs precise transient analysis with a scope function
  • digitizes voltage and current
  • displays results on a 4.3-inch color LCD screen
Advanced characterization
  • use operating modes: constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CP)
  • improve measurements with low current range
  • dynamic load profiles with List (continuous, pulse, or toggle)
  • adjust transient steps with programmable slew rate
  • modern connectivity: LAN (LXI-core), USB and GPIB (optional)
You’ll notice the familiar look as the new loads use the same compact footprint as the popular E36200 and E36300 Series power supplies.

Standard Shipped Accessories:
  • EL34143A
    • AC power cord
    • 10 A, 3.5 mm female 4-pin terminal I/O block connector (1ea)
    • 8 A, 3.5 mm 2-pin terminal sense block connector (1ea)
    • 85 A, 12 mm 2-pin input connector (1ea)

  • EL34243A
    • AC power cord
    • 10 A, 3.5 mm female 4-pin terminal I/O block connector (1ea)
    • 8 A, 3.5 mm 2-pin terminal sense block connector (2ea)
    • 85 A, 12 mm 2-pin input connector (2ea)
Optional Accessories:
  • Options
    • Option SEC NISPOM and file security
    • Option UK6 Commercial calibration with test result data

  • GPIB module and rackmount kits
    • EL34GPBU GPIB user-installable interface module
    • 1CM104A Rack mount flange kit with two flange brackets
    • 1CM105A Rack mount flange kit without handles and two flange brackets
    • 1CM116A Rack mount flange kit with one flange bracket, one half-module bracket
    • 1CN107A Handle kit with two front handles
    • 1CP108A Rack mount flange and handle kit with two brackets and front handles

Brand: Keysight
Maximum Current: 60 A
Maximum Power: 300 W
Series: EL30000 Series
Interface: USB,LAN
Maximum Voltage: 150 V
Special Features: 2 Channel
