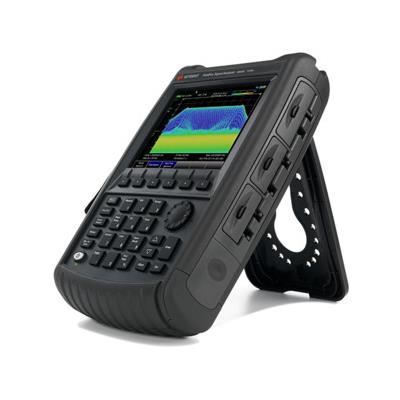

Keysight N9936B FieldFox Handheld Microwave Spectrum Analyzer, 14 GHz, Type-N(f), N993xB Series
$28,028
Model :
- N9936B
- N9936B - 14 GHz FieldFox Signal Analyzer
- Expand capabilities with optional real-time spectrum analyzer or tracking generator
- Make accurate spectrum analyzer measurements (±0.3 dB) without warm-up
- Capture intermittent signals with 100 MHz gap-free real-time bandwidth
- Portable solution for radar pulse profile characterization
- Supports over-the-air measurements for 5GTF and LTE
- Ideal I/Q data capture tool for RF signal monitoring and analysis
- GPS/GNSS receiver for geolocation and timestamping
- Lightest all-in-one analyzer at 7.35 lb.
FieldFox, the industry's most versatile portable analyzer, has launched this new line of future-ready analyzers to address the ever-increasing demands of 5G, satellite communications, signal monitoring and electronic warfare applications. All existing FieldFox A Series measurement capabilities (except QuickCal) are supported on the new FieldFox B Series. 100 MHz (Option B10) and 40 MHz (Option B04) analysis bandwidth options will be available on the B models, with 10 MHz as the standard option
Industry's most precise handheld analyzer with optional 100 MHz RTSA
Brand: Keysight
Frequency Range: 8.0 - 15.0 GHz
Maximum Frequency: 14 GHz
No. of Ports: 2
Series: N993xB Series
Mounting Type: Handheld
Minimum Frequency: 9 kHz
Tracking Generator: No
Noise Floor: -163 dBm
Preamplifier: No
