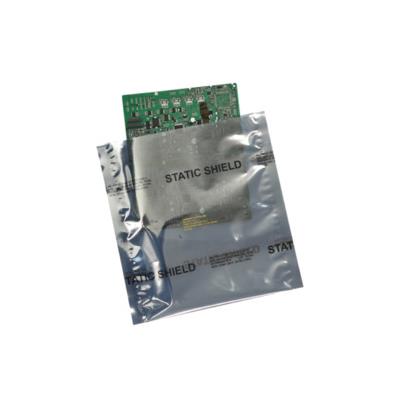

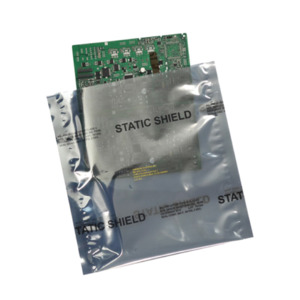

Desco 12916 STATSHIELD® Metal-In Bags, 8"x12", 100/Cs
$50
Model :
- 12916
- Film Laminate Metal Layered 0.0035” (3.5 mil) Thick Bag. Designed for electrostatic discharge (ESD) shielding protection. Meets ANSI/ESD S20.20, ANSI/ESD S541, EIA 541, JESD625-A, and EIA 583.
- <10 nJ Energy Penetration Tested per ANSI/ESD STM11.31. Protects contents from ESD charges and discharges. Meets the requirement for static shielding per ANSI/ESD S541, and EIA 541.
- >20lb Puncture Strength Average per FTMS 101C/4046. Provides physical protection for contents.
- Dissipative Inner and Outer Surfaces Rtt <1 x 1011 ohms per ANSI/ESD STM11.11. Allows bag to be grounded when placed on a grounded surface.
- Printed with ESD Protective Symbol and lot code information. Meets the requirements of ANSI/ESD S541 for quality control purposes.
- Lead-free RoHS compliant
- Made in the United States of America
81705 Series bags and film are manufactured from four layers - static dissipative coating, polyester, metal and polyethylene laminate. The polyester dielectric in concert with the metal layer provides discharge shielding. The exterior is static dissipative and allows electrostatic charges to be removed when grounded.
Brand: Desco
Color: Silver
ESD Safe: Yes
Length: 12"
Material: Low-Density Polyethylene (LDPE)
Package Quantity: 100 Per Pkg.
Series: 81705 Series
Size W x L: 8" x 12"
Temperature Range: 360°F, 182°C
Thickness: 2.8 mil
Type: Metal-In Static Shielding Bag
Width: 8"
Opening Type: Open Top
Tensile Strength: 4600 PSI
Surface Resistivity: Interior: ≥ 1 x 10⁵ to < 1 x 10¹² ohms/sq, Exterior: < 1 x 10< 1 x 10¹² ohms/sq Ohms/sq
Heat Sealable: Yes
Decay: <2 seconds
Opening Style: Open
Puncture Strength: 12 lbs
