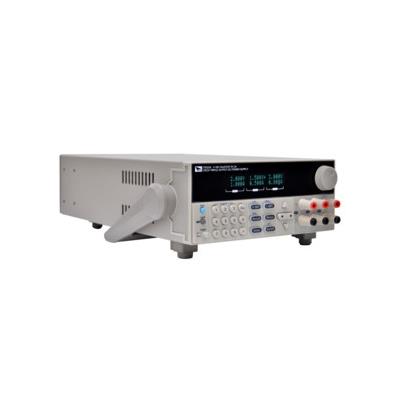

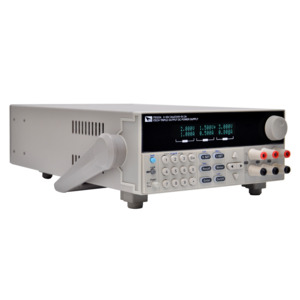

ITECH IT6322A DC Power Supply, Triple Output, 2x 30 V / 3 A / 90 W, 1x 5 V / 3 A / 15 W, IT6300A Ser
$1,025
Model :
- IT6322A
IT6300A Series Triple Channel DC Power Supply
IT6300A series is a high-performance programmable triple channel DC power supply, each output voltage and current can be set from 0 to its maximum rating. The units support series connection, parallel connection and synchronous functions of channel, which offer multi-purpose test solutions for users. Its high resolution 1mV / 1mA and remote sense function enable more accurate testing while built-in standard USB / RS232 communication interfaces enhance communication speed. In addition, customers can adjust the digital step value using the on-screen cursor for futher operations.
IT6300A Series Features:
- Triple output voltage, all are adjustable
- Optional serial/ parallel/ track mode
- Displays voltage and current settings for all three channels simultaneously
- Small size of 1/2 2Uv
- VFD display
- Function keys with LED light
- Adjust the digital step value via cursor
- Output switch control
- High accuracy, high resolution and high stability
- Remote measurement function, compensation online pressure drop
- Comprehensive protection function
- Intelligent fan control, reduce noise
- Built-in RS232/USB communication interface
Brand: ITECH
Includes: Power cord, USB cord, Factory calibration certificate
Number of Outputs: Triple Output
Output Voltage: 5V, 30V x 2
Power Rating: 90 W
Series: IT6300A Series
Interface: USB,RS-232
Mounting Type: Bench Top
Output Current: 3A
Input Voltage: 110/220 VAC
Special Features: Series, Parallel Modes
Display: VFD
Programmable: Yes
