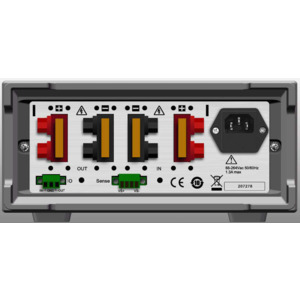

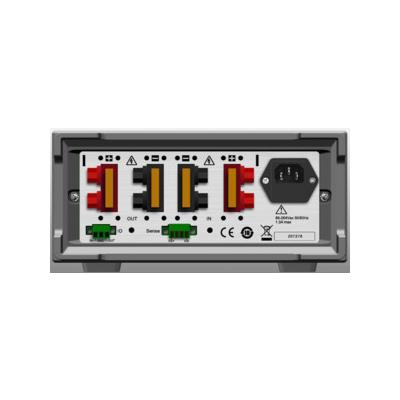

IT-E165A-250 Anti-Reverse Protection Unit

Features and Specifications

• Voltage: 750V / Current: 250A
• Effectively avoids the reverse connection of the DUT
• Built-in detection circuit detects the voltage difference
• If reversed, test circuit is disconnected to ensure safety of the DUT and operator

Compatibility of the IT-E165A
IT-E165A is an optional anti-reverse module, it's suitable for IT6000 series (including IT6000B, IT6000C, IT6000D, IT8000), IT-M3900 series (including IT-M3900B, IT-M3900C, IT-M3900D, IT-M3800) and IT6500C/D series.

It is necessary to consider that the voltage/current of the DUT is within the rated voltage/current range of IT-E165A.
