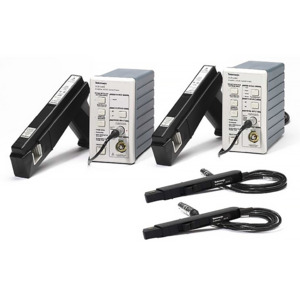

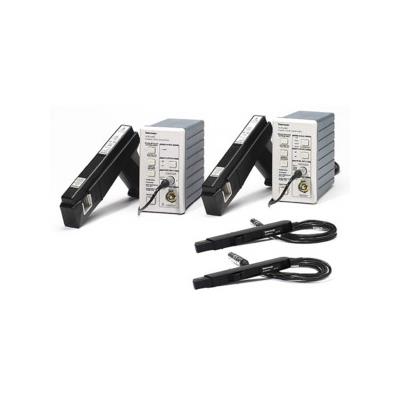

Tektronix TCP0150 AC/DC Current Oscilloscope Probe

Features and Specifications

• DC to 20 MHz bandwidth
• 150 ARMS maximum current capability
• 500 A peak pulse current capability
• High accuracy with typically less than 1% DC gain error
• Accurately measures current levels as low as 5 mA
• Easy-to-Use and accurate AC/DC current measurements
• Connects directly to oscilloscopes with the TekVPI™ probe interface
• Low noise and DC drift
• Provides automatic units scaling and readout on the oscilloscope's display
• Remote GPIB/USB probe control through the oscilloscope
• Split-core probe head construction allows easy connection to conductors
• Easy to degauss and autozero
• Setup controls and probe status and diagnostic indicators are provided on both the probe hardware and through an Easy-toAccess scope UI display menu

This AC/DC current measurement probe provides 20 MHz of frequency bandwidth with selectable range control for 25 A and 150 A measurement ranges. It also provides low current measurement capability and accuracy to current levels as low as 5 mA per division - important for achieving broad dynamic current range of high-level and low-level measurement signals. Applications include: Power Supplies, Semiconductor Devices, Power Inverter/Converters, Electronic Ballasts, Industrial/Consumer Electronics, Mobile drives, Motor Drives and Transportation Systems.

What's in the Box

• Protective cover
• Certificate of traceable calibration
• Data standard
