Tektronix TCP404XL Current Probe, AC/DC, 1 A, 500 A, 2 MHz, 600 V, 25mm, 750 A, 8m, TCP Series
$6,580
Model :
- TCP404XL

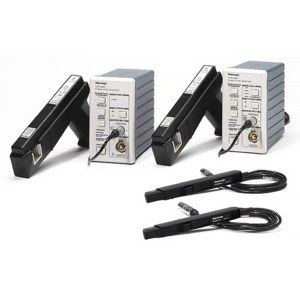

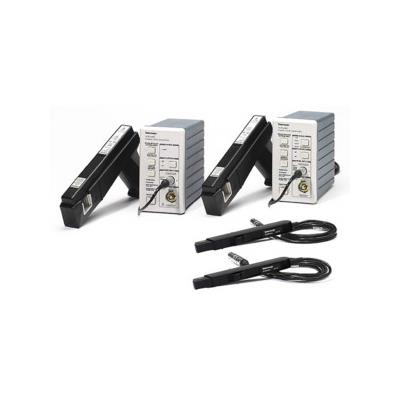

Tektronix TCP404XL AC/DC Current Oscilloscope Probe
Features and Specifications
- Automatic scaling and units 2 - Oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more hand calculations
- DC to 2 MHz, 500A DC (750A with duty cycle), 750A PK
- AC/DC input coupling
- Low insertion impedance reduces device under test loading
- Split-core construction allows easy circuit connection
- Status indicators provide visual operating status and notification of potential error conditions - degauss, probe open, overload, not terminated into 50 Ω, noncompatible probe type
- Low DC drift and noise allows improved low-level current measurements
- 3rd party safety certification
The TCP300 and TCP400 Series AC/DC current measurement family is a highly advanced current measurement system for today's current measurement needs. When connected to Tektronix oscilloscopes with TEKPROBE Level II, TekConnect (w/ TCA-BNC), or TekVPI (w/ TPA-BNC) interfaces, current measurements and calculations are simple and easy.
What's in the Box
- Compliance and safety instructions
- Certificate of traceable calibration
Brand: Tektronix
Bandwidth: 2 MHz
Cable Length: 8 m
Maximum Current: 500 A
Series: TCP Series
Input Coupling: AC/DC
Safety Rating: CAT1 | CAT2
Max Input Voltage: 600 V
Maximum Wire Size: 21, 25 mm
Minimum Current: 1 A
Peak Current: 750 A
