Tektronix TCP2020 Current Probe, AC/DC, 10 mA, 20 A, 50 MHz, 150 V, CAT2, 100 A, 2m, TCP Series

$3,940

Model :
  • TCP2020
Share:

Tektronix TCP2020 AC/DC Current Oscilloscope Probe

Features and Specifications

  • Easy-to-use and accurate AC/DC current measurements
  • 20 ARMS Maximum Current Capability
  • 100 A peak pulse current capability
  • DC to >50 MHz bandwidth
  • Core jaw diameter of 5 mm (0.2 in.)
  • Accurately measures current levels as low as 10 mA per division
  • High accuracy with typically less than 1% DC gain error
  • Split-core construction allows easy circuit connection
  • Low noise and DC drift

This AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP2020 provides a maximum 20 ARMS measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today's challenging current measurement needs. Applications include: Power Supplies, Semiconductor Devices, Power Inverter/Converters, Electronic Ballasts, Industrial/Consumer Electronics, Mobile Communications, Motor Drives and Transportation Systems.

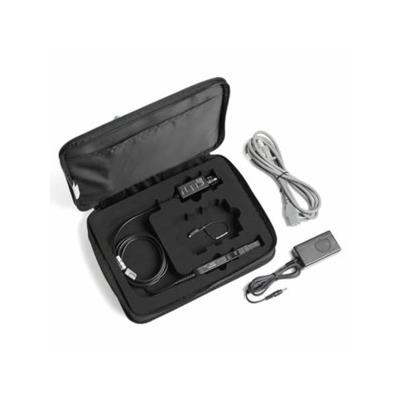

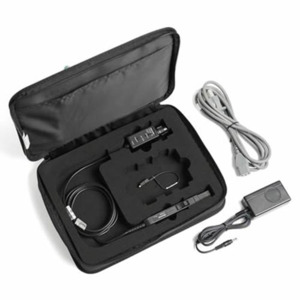

What's in the Box

  • Instruction manual
  • Probe ground lead - 6 in. length
  • Nylon carrying case
  • AC adapter

Brand: Tektronix
Bandwidth: 50 MHz
Cable Length: 2 m
Maximum Current: 20 A
Series: TCP Series
Dimensions: 4.2 x 1 x 1.6 in.
Input Coupling: AC/DC
Series Compatibility: 2 SERIES MSO MIXED SIGNAL OSCILLOSCOPE, 3 SERIES MDO MIXED DOMAIN OSCILLOSCOPE, DPO/DSA/MSO70000, DPO7000C, MDO3000, MDO4000C, MSO/DPO2000, MSO/DPO2000B, MSO/DPO3000, MSO/DPO4000, MSO/DPO5000, MSO/DPO5000B, MSO4000B, TBS1000/TBS1000B/TBS1000B-EDU, TBS2000
Safety Rating: CAT2
Max Input Voltage: 150 V
Minimum Current: 10 mA
Peak Current: 100 A
Risetime: 7 ns
