Tektronix CT1 High-Frequency Current Probe, AC, 200 mA, 450 mA, 1 GHz, 30 V, 1.78mm, 12 A, 350 ps

$1,200

Model :
  • CT1
Share:

Tektronix CT1 AC Current Oscilloscope Probe

Features and Specifications

  • High Bandwidth, 25 kHz to 1 GHz
  • Ultra-low Inductance
  • Very Small Form Factor
  • Characterize Current Waveforms up to <200 ps Rise Times
  • Very Low Loading of Circuit Under Test
  • Fits Into Dense, Closely-spaced Circuit Designs

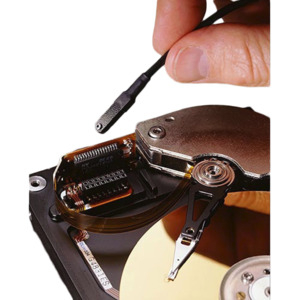

The CT1 Current Probe is designed for permanent or semi-permanent in-circuit installation. The probe consists of a current transformer and an interconnecting cable. The current transformers have a small hole through which a current carrying conductor is passed during circuit assembly.

The P6041 Probe Cable provides the connection between the CT1 Current Transformers and a BNC oscilloscope input. A 50 Ω termination is required to terminate the cable when connected to a high-impedance (1 MΩ) oscilloscope input. One probe cable can be used to monitor several current transformers that have been wired into a circuit.

What's in the Box

  • Manual
  • P6041 Interconnect Cable

Brand: Tektronix
Bandwidth: 1 GHz
Maximum Current: 450 mA
Series: CT Series
Dimensions: 1.52 x 0.59 x 0.406 in.
Input Coupling: AC
Series Compatibility: DPO/DSA/MSO70000, DPO7000C, MDO3000, MDO4000C, MSO/DPO2000, MSO/DPO2000B, MSO/DPO3000, MSO/DPO4000, MSO/DPO5000, MSO/DPO5000B, MSO4000B, TBS1000/TBS1000B/TBS1000B-EDU, TBS2000, TBS2000, TDS3000, TDS5000, TDS6000, TDS7000, THS3000, and TPS2000
Max Input Voltage: 30 V
Maximum Wire Size: 1.78 mm
Minimum Current: 200 mA
Peak Current: 12 A
Probe Length: 1.06 m
Risetime: 0.35 ns
