Pico Technology TA300 Current Probe for PicoScope 4444, AC/DC, 100 kHz, 300 V, CAT3, 25mm, 40 A, 2m
$389
Model :
- TA300

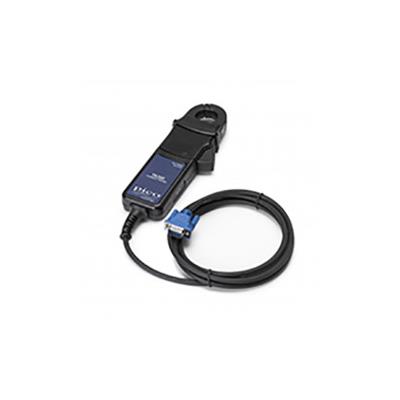

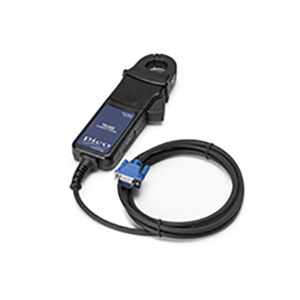

Pico Technology TA300 AC/DC Current Oscilloscope Probe
Features and Specifications- Nominal current: 40 A AC peak or DC
- Measuring range(s): 40 A
- Output sensitivity: 100 mV/A
- Frequency range: DC to 100 kHz (0.5 dB)
- Power supply: 5 V nominal from PicoScope 4444
The TA300 is a 100 kHz bandwidth, single-range 40 A AC or DC current probe using the D9 connector specific to the PicoScope 4444 differential oscilloscope. On connection with the scope, the probe is instantly sensed and the vertical range automatically set up in PicoScope software. The probe is also powered by the scope through the D9 connector.
Note: When using the PicoScope 4444 with USB power (no AC adaptor connected), sensor power is limited to a maximum of 3 x TA300 probes at once.
Brand: Pico Technology
Bandwidth: 100 kHz
Cable Length: 2 m
Maximum Current: 40 A
Input Coupling: AC/DC
Safety Rating: CAT3
Max Input Voltage: 300 V
Power Supply: 5 V
Maximum Wire Size: 25 mm
Peak Current: 40 A
