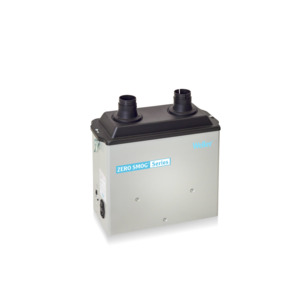

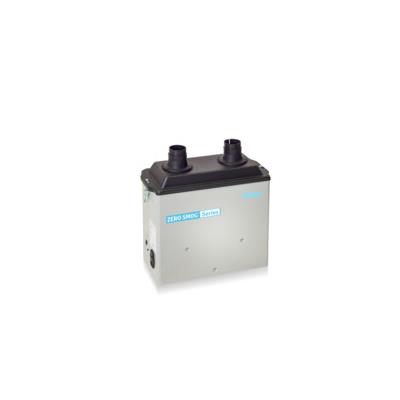

Weller U-130-1055-esdn Fume Extraction Unit MG 130 MIT Kit Nozzle

$1,480

Model :
  • U-130-1055-esdn
Share:

  • Purifies air at up to 2 workplaces
  • Filter alarm and 3-step speed control
  • 100 - 240V power supply
  • Arms attach directly to unit - no mounting hardware needed
  • Applications: Hand soldering, heavy duty and general soldering, gluing, cleaning, filling, fine dust, MEK, cleanroom
  • Variable speed and alarm function for filter change
  • Maximum extraction rate 140 m3/h

Includes MG130 fume extraction unit 100 - 240 V / 50/60 HZ, H13 compact particle filter with wide band gas filter, pre-filter F7 Also includes 2 0F10 extraction arms and 1 ALFA nozzles The fume extraction unit MG 130 Kit Nozzle is easy to install and operate. It will be supplied complete with 2 pcs. flexible extraction arms 1 meter and 2 pcs. metal sloped nozzle 130 mm. The extraction arms fixed direct on the unit who will place close to the workbench. Arms attach directly to unit - no mounting hardware needed Applications: Hand soldering, heavy duty and general soldering, gluing, cleaning, filling, fine dust, MEK, cleanroom Variable speed and alarm function for filter change Maximum extraction rate 140 m3/h

Brand: Weller
ESD Safe: Yes
Height: 19.6"
Length: 18.1"
Width: 8.2"
Voltage: 110 - 240 V, 50/60 Hz
Dimensions: 460 x 210 x 500mm
Maximum Capacity: 1–2 workstations
Filter Type: Particle filter H13, Wide band gas filter (50 % Active carbon + 50 % Chemisorb)
Maximum Vacuum Rate: 2.300 Pa
Noise Level [dB]: < 52
