RevealPRO Fastframe RQ-AAAX - Ruggedized Hi-Res Thermal Camera

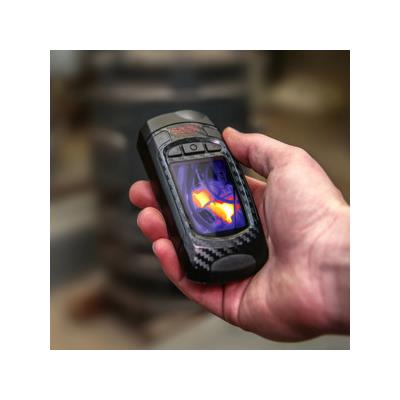

The Seek Thermal RevealPRO is our most advanced handheld thermal imaging camera yet.

Key Features

• 320 x 240 High-Resolution Thermal Sensor- 76,800 temperature pixels for maximum image clarity and sensitivity

• Adjustable Emissivity- Calibrate for reflective surfaces when accuracy is critical

• Wide, 32-Degree Field of View- Easily scan a large area to identify potential hazards in seconds

• Long-Lasting Rechargeable Battery- Up to 4 hours of continuous thermal imaging in Normal MODE

• See Through the Dark, Light Optional- 300 lumen LED flashlight available at the touch of a button

• Best-in-Class Object Temperature Range- Measure temperatures from -40° to 626°F

The Seek Thermal RevealPRO is Highly durable and easy to use, RevealPRO combines a high-performance 320 x 240 thermal sensor with intuitive software to help you work smarter. And, when you need it, a powerful 300-lumen LED light is available at the touch of a button. Offering adjustable thermal span, level, and emissivity settings, the RevealPRO delivers unprecedented high-resolution thermal imaging and software capabilities available at this price.

Specifications

• Thermal Sensor: 320 x 240 (76,800 pixels)

• Detection Distance: 12 inches to 1,800 feet

• Field of View: 32 Degree FOV

• Temperature Range: -40°F to 626°F

• Frame Rate >15 Hz FastFrame in Normal MODE

• Focus: Fixed Focus

• Flashlight: 300 Lumen LED

• Display: 2.4” Color with Corning® Gorilla® Glass

• Microbolometer: Vanadium Oxide

• Thermal Sensitivity: <70 mK

• Spectral Range: 7.5 – 14 Microns

• User Interface: Self-Contained Device with 3 Button Navigation

• Temp. Display Scale: Fahrenheit, Celsius, or Kelvin

• Color Palettes: 9 Options (Grayscale and High-Contrast)

• Storage Media: 4GB Internal Drive (>4,000 images)

• Battery: Up to 4 Hours Thermal Imaging in Normal MODE

Benefits & Uses

• Accurately Inspect Mechanical and Electrical Equipment- Diagnose and assess the problem source quickly

• Safely Monitor Hazardous Environments- Evaluate potentially dangerous situations from a safe distance

• See More Thermal Detail Where You Need it Most- Level and span controls let you isolate and capture the details that matter

• Durable, All-In-One Device- Rugged, rubberized casing with Corning® Gorilla® Glass and intuitive controls go and work where you do

• Time of Day Won’t Slow You Down- Safely examine any job site in daylight or total darkness

• Easily Document and Share- Save thermal images directly to the 4GB internal hard drive

In The Box

• Seek RevealPRO

• Wrist Lanyard

• Welcome Guide

• USB Cable
